Project TMV 132

Original

Mirrored

TMV 132

192.14 m²

Project cost

32 500 UAH

Ask a question about the project

Project preparation time:
before 10 days

Construction Cost

~ 86 463$

Mirror version of the project

First floor plan

Roof plan

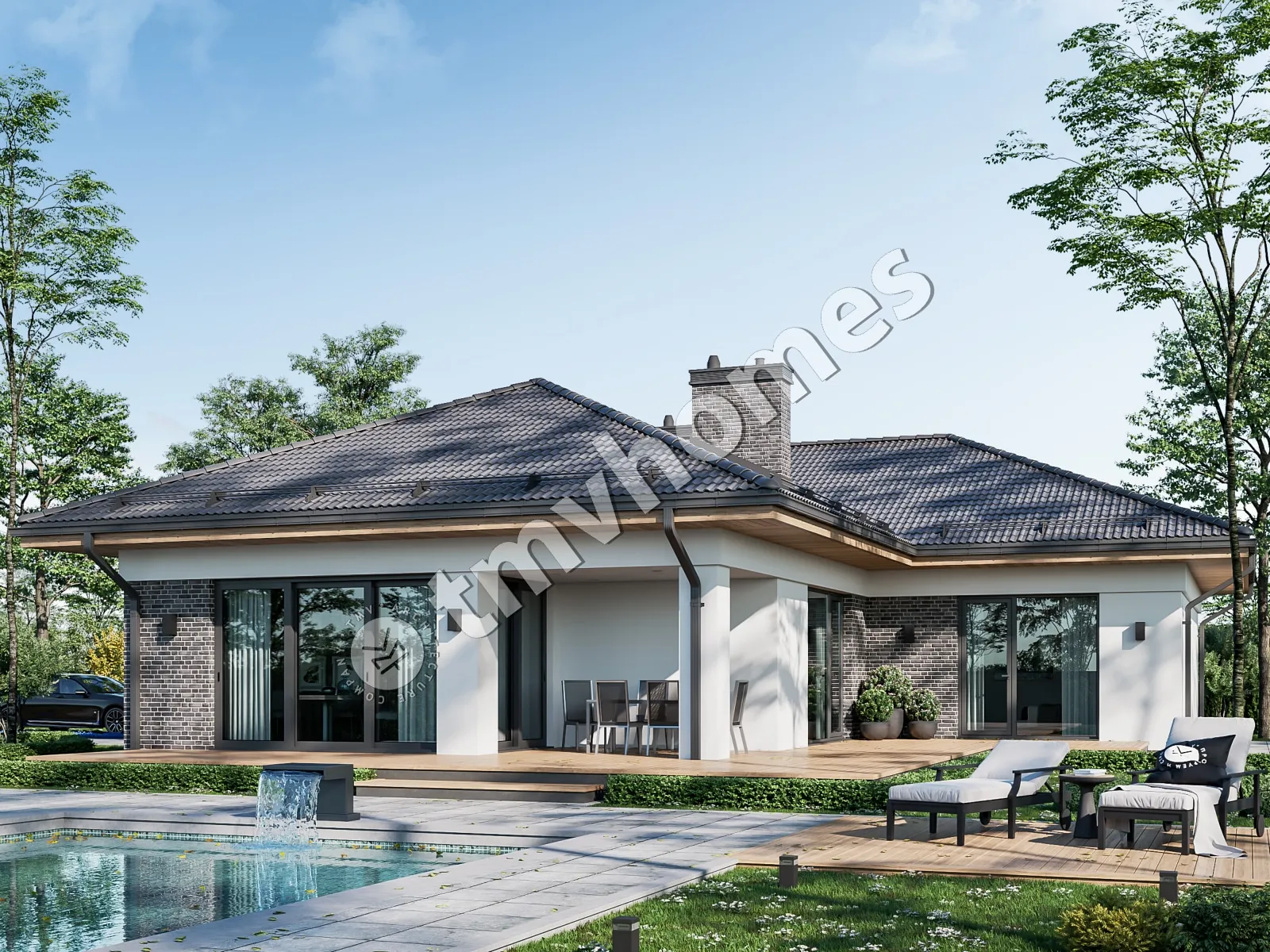

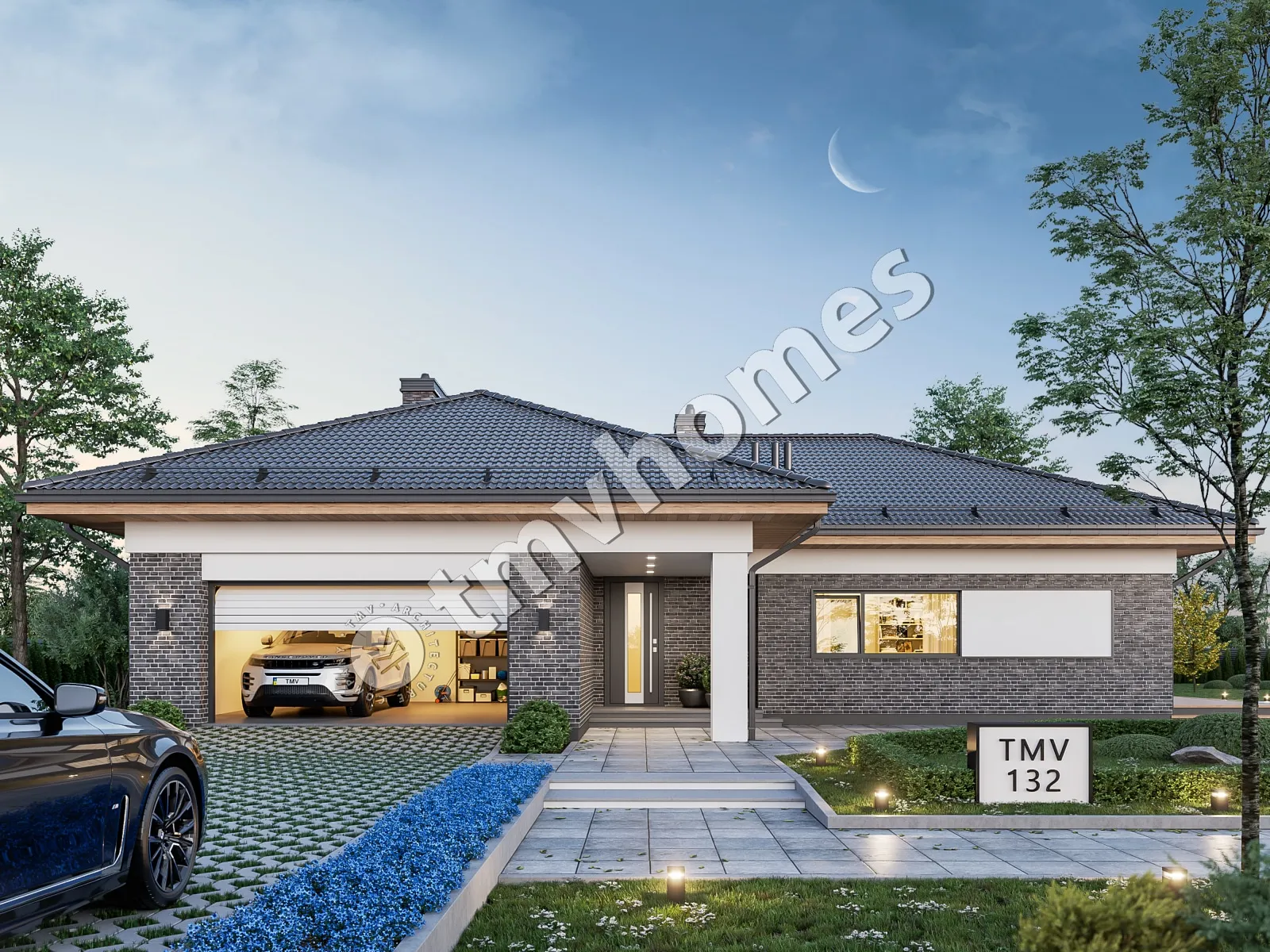

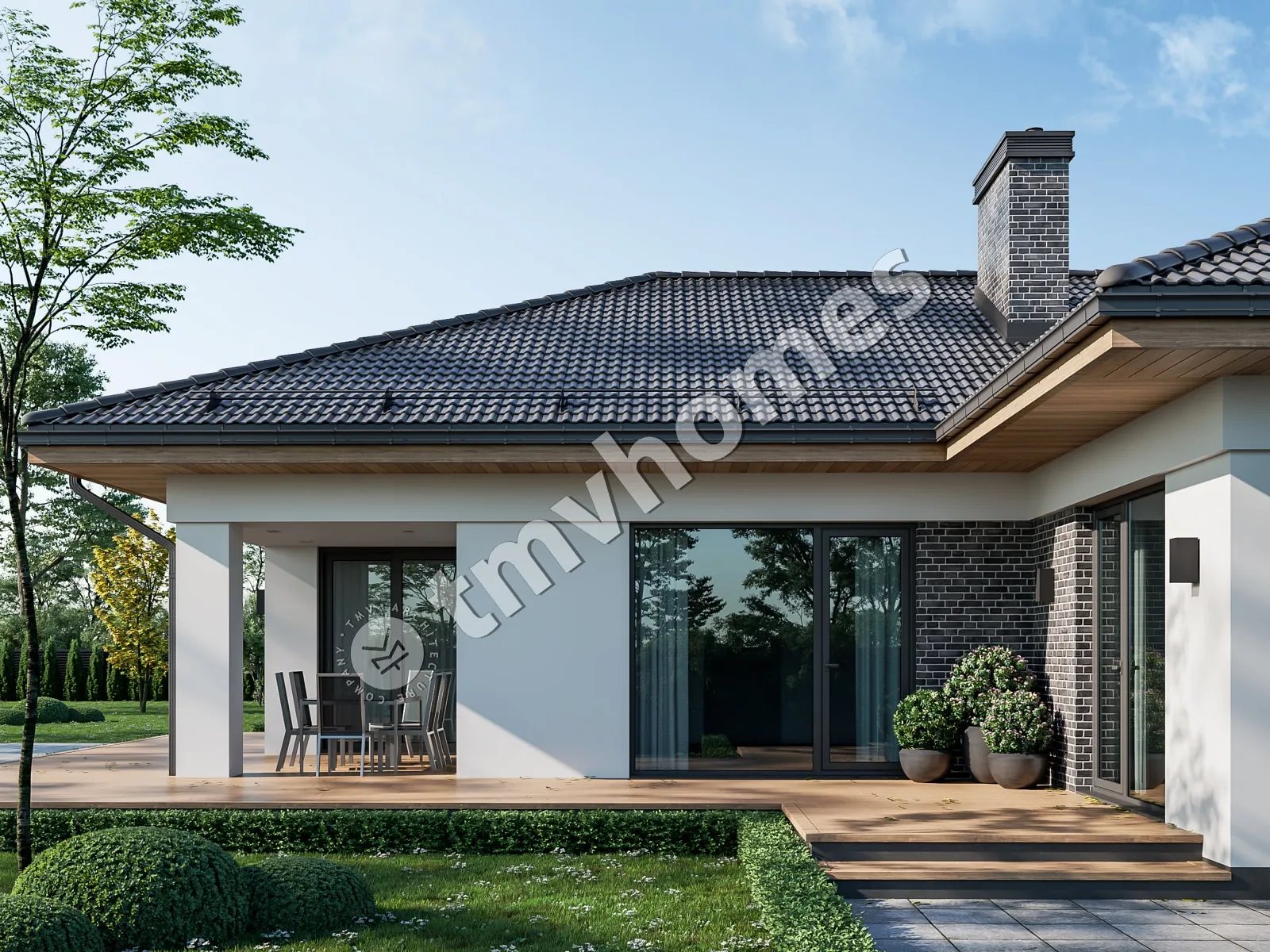

Facades

General characteristics

Total area 192.14 m²

1st floor area 192.14 m²

Living area 66.59 m²

Dimensions 17.04 x 18.27 m

1st floor height 3.00 m

Building area 315.10 m²

Roof area 341.32 m²

Roof pitch 25 °

House height 6.11 m

Bedrooms 3

Bathrooms 3

Alteration are possible

Author's title TMV132

Exterior walls

aerated concrete 300 mm + insulation 100 mm

Foundations

monolithic strip

Overlaps

prefabricated slabs

Roofing material

metal tile

Construction
houses

The composition of a standard project:

Project documentation for standard projects is issued in two identical printed copies. The average size of one project copy ranges from 50 to 70 pages, in A4-A3 format.

Architectural Section:

General project statements
Master plan diagram
Floor plans
Roof Plan
Building Facades (4 projections)
Building sections
Specification of windows and doorways
Floor explication
Ventilation risers
Project visualization

Constructive section:

General project statements
Layout for the foot of the foundation
Layout of foundation walls
Foundation Sections
Layout of floor jumpers
Monolithic Column Schemes
Floor plan
Overlap Sections
Staircase diagram
Embedded parts
Truss System Plan
Truss System Sections
Specifications (concrete, reinforcement, wood, lintels)

Engineering Section:

Heating system (plans, diagram, specification of equipment and materials)
Water supply and sewerage system (plan, diagram, specification of equipment and materials)
Power electrical networks:
- electric lighting networks
- wiring diagrams for switches and lamps
- diagram of the grounding and equipotential bonding system
Detailed description and characteristics of all elements of engineering systems.

What you need to know about our projects:

The price of completed projects on the website is indicated for the Architectural and Structural sections.

The Engineering section of the projects is available for an additional fee (starting from 20 000 UAH).

All projects are developed according to Ukrainian building regulations and use materials available in the market.

House projects can be ordered in the original version or as a mirror image.

Projects in the EP (Draft design) stage for submission and approval in the unified electronic registry are paid additionally.

Changes to the standard project are possible based on individual preferences (additional fees apply).

The project preparation time ranges from 10 to 30 working days, depending on the project's readiness and preferences.

All our house projects can be modified or adapted to specific construction conditions, taking into account the individual preferences of the Client.

The adaptation of the project may include:

Adjusting the house to the site's master plan.
Adapting the foundations to the geological conditions of the site (geology report is required).
Adapting the project to the climatic conditions of the specific region (possible changes to walls, foundations, roof slope).
Adapting the engineering section of the project to the site's conditions (sewerage, water supply, heating, electricity).

Possible changes to the project:

Allowed and most frequent changes:

Changing the construction materials and techniques (foundations, walls, floors, roof).
Adjusting the location of internal partitions, windows, and door openings.
Minor changes to the overall dimensions of the house.
Changing the roof slope.
Designing a basement.
Altering the finishing materials inside and outside the house.

When maintaining the style and concept of the project, it is allowed to:

Make changes to external windows and door openings.
Adjust the sizes of windows and doors.
Design an additional entrance to the house or garage.
Modify the number and size of attic windows.
Make changes to external elements of the house, such as a garage, balcony, terrace, bay window, conservatory, veranda.
